Russian Fighter Aircrafts - Weapon loadout & important systems [Graphic Illustration] - UPDATED [2012.02.07]

10 comments

In various issues of Take-Off magazine, it has published a number of illustrations, depicting weapon loadout of some Russian Fighter aircrafts & showing locations of important systems in the aircraft. A handy reference.

Click on the picture to view a larger-sized image

Mikoyan MiG-29SMT
Russian Fighter Aircraft Mikoyan MiG-29SMT [ Россия истребителя МиГ-29СМТ ]


Mikoyan MiG-35
Russian Fighter Aircraft Mikoyan MiG-35 [ Россия истребителя МиГ-35 ]


Sukhoi Su-27SKM
Russian Fighter Aircraft Sukhoi Su-27SKM [ Россия истребителя Су-27СКМ ]

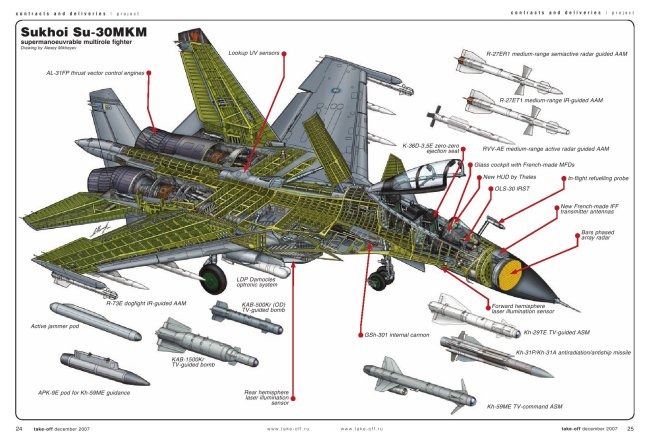

Sukhoi Su-30MKM
Russian Fighter Aircraft Sukhoi Sukhoi Su-30MKM [ Россия истребителя Сухого Су-30МКМ ]


Sukhoi Su-33K
Russian Fighter Aircraft Sukhoi Su-33K [ Россия истребителя Су-33K ]


Sukhoi Su-35
Russian Fighter Aircraft Sukhoi Su-35 [ Россия истребителя Су-35 ]

Russian Fighter Aircraft Sukhoi Su-35 [ Россия истребителя Су-35 ]

Update: 2012.02.07

System layout: MiG-29 & MiG-29UB

MiG-29-UB-Fighter-Aircraft-System-Layout

Earlier: Indian Navy's MiG-29K aircraft - Weapon Load Out & Powerplant [Graphics]

Godspeed
